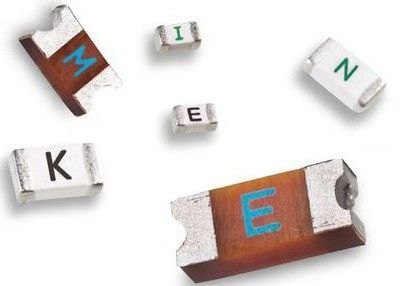

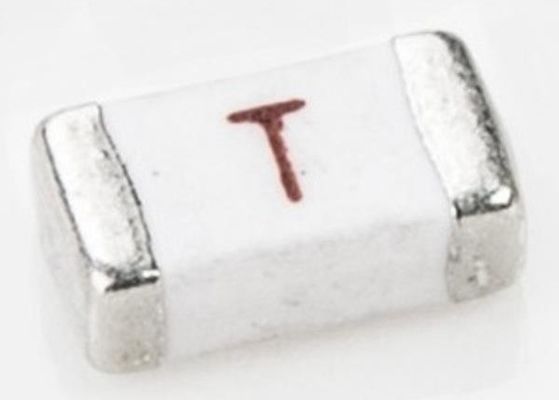

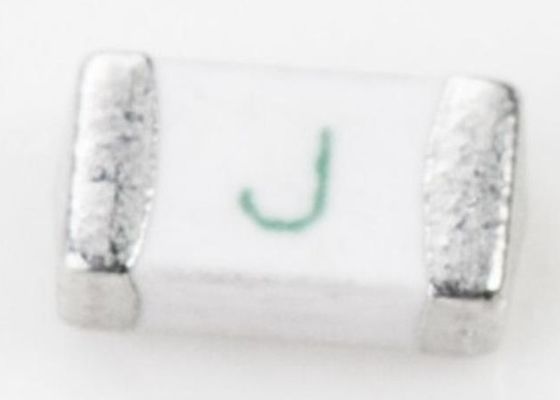

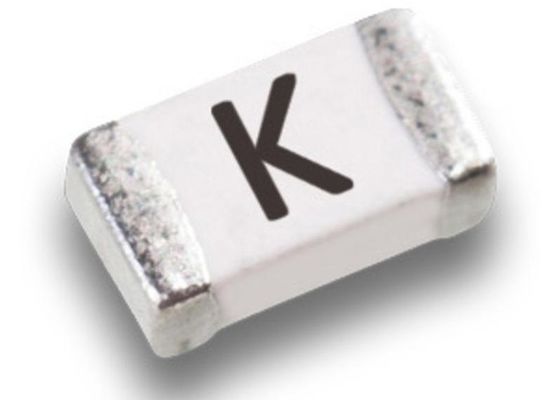

3216 Automatische montage met één fusie, snelwerkende oppervlakteverbinding 12D1200 2A 63V voor overstromingsbescherming
Kenmerken
snelwerkende precisie-dunnefilmchip-sluiters voor overstromingsbescherming
3216 (EIA 1206) miniatuurvoetafdruk
Verpakkingen voor automatische montage
UL-lijst (UL 248-14)
RoHS-conform* en halogeenvrij
Nummering van onderdelen
| Catalogus |
Amperen |
Spanning |
Markering |
Integral smelten |
| - Nee, dat is niet waar. |
Rating |
Rating |
(A2.S) |
| 12D0250C |
250 mA |
63 V |
.25 |
0.0035 |
| 12D0375C |
375 mA |
63 V |
● |
0.0011 |
| 12D0500C |
500 mA |
63 V |
0.5 |
0.0020 |
| 12D0750C |
750 mA |
63 V |
.75 |
0.0053 |
| 12D1100C |
1A |
63 V |
1 |
0.0065 |
| 12D1125C |
1.25A |
63 V |
▲ |
0.020 |
| 12D1150C |
1.5A |
63 V |
1.5 |
0.025 |
| 12D1200C |
2A |
63 V |
2 |
0.091 |
| 12D1250C |
2.5A |
63 V |
2.5 |
0.150 |
| 12D1300C |
3A |
63 V |
3 |
0.329 |
| 12D1400D |
4A |
32 V |
4 |
0.225 |
| 12D1500D |
5A |
32 V |
5 |
0.564 |
| 12D1700D |
7A |
32 V |
7 |
3.197 |
| 12D2100E |
10A |
24V |
10 |
2.162 |
| 12D2120E |
12A |
24V |
12 |
7.100 |
| 12D2150E |
15A |
24V |
15 |
23.893 |
| 12D2200E |
20A |
24V |
20 |
47.172 |
Tijdlopende kenmerken
| Ampere-kwaliteit |
Ampere-kwaliteit |
Openingstijd |
| 250mA ̇ 20A |
100% |
4 uur Min. |
| 250mA3A |
250% |
Maximaal 5 s |
| 4A20A |
350% |
Maximaal 5 s |
Betrouwbaarheid
Testmethode met testvereiste voor testparameters
Draagvermogen Geen fusie Nominale stroom, 4 uur fusietijdBinnen 5 seconden....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................de nominale spanning opnieuw gedurende 30 seconden wordt toegepast
Buigproef........................................................ Geen mechanische beschadigingen Afstand tussen vasthoudingspunten: 90 mm, Buiging: 3 mm,1tijd, 30 seconden
Weerstand tegen soldeerwarmte ±20 % 260 °C ±5 °C,10 seconden ±1 seconde
Soldeerbaarheid 95 % dekking minimaal 235 °C ±5 °C, 2 ±0,5 seconde 245 °C ±5 °C, 2 ±0,5 seconde (loodvrij)
Temperatuurverhoging................................... < 75 °C 100% van de nominale stroom, maat van de oppervlaktetemperatuur
Weerstand tegen droge hitte ±20 % 105 °C ±5 °C,1000 uur
Resistentie tegen oplosmiddelen................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Residuele weerstand 10k ohm of meer meet gelijkstroomweerstand na fusie
Thermische schok................................... DR < 10 %................-20 °C / +25 °C / +125 °C / +25 °C, 10 cycli
